Reese is proud to announce
the highest evolution in Fifth Wheel performance: The Signature
Series by Reese. It is founded in the world renowned Reese Fifth
Wheel platform and finished with features designed to ensure the
greatest heavy-duty towing performance available.
|
|
 |
16K Signature Series 5th
Wheel
PN 30057 |

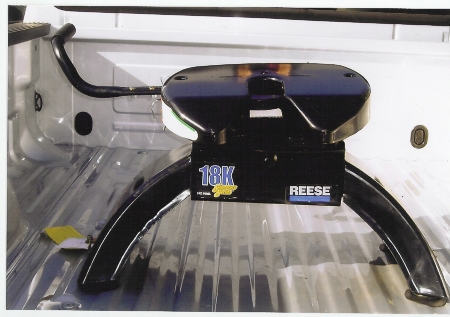

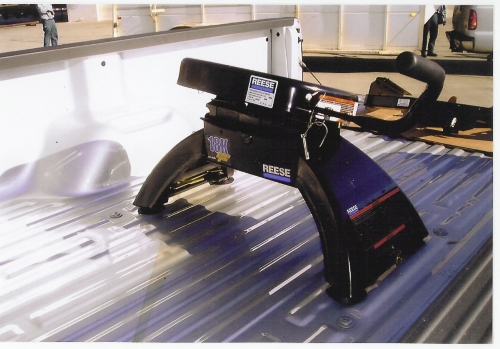

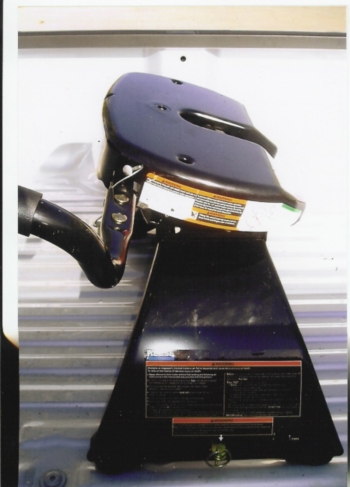

18K Signature Series 5th
Wheel
PN 30058 |
|
|
|
|
16K SIGNATURE SERIES
- 16,000 lb. gross / 4,000 lb. pin weight
capacities
- 2 way (front to back) 10° head pivot
- 14" – 18" vertical adjustment
- Forged single jaw
- Increased kingpin/jaw contact design
- Self latch after cocking
- King pin indicator
- Formed arched platform
- Wider platform/mounting footprint
(increased stability)
- Stamped rounded head
- Wider 9" (vs 6") kingpin funnel area on
head
- Under bed mounting kit
- Custom mounting kits
- Lockable mount handles (lock purchased
separately)
- 1/4 turn handle "quick lock" mount system
- "Tight lock" non-pin mounting reduces slop
- Machined flush mount platform receptacles
- Contemporary 21st century appearance
- Seven year limited warranty
|
|
|
|
|
18K SIGNATURE SERIES
All 16K features, plus:
-
18,000 lb.
gross / 4,500 lb. pin weight capacities
-
Improved 4
way head pivot
-
4 degree
side to side head pivot for better control
-
Extended
length handle
-
Seven year
limited warranty
|
|
|
|
24K SIGNATURE SERIES
All 18K features, plus:
-
24,000 lb.
gross / 6,000 lb. pin weight capacities
-
Reinforced
formed arch platform
-
Reinforced
head
-
Heavier
forged jaw
-
Higher
capacity head support structure
-
Seven year
limited warranty
|
|
|
Signature Series Slider
Designed for short bed and extended cab pickups to provide
additional turning clearance and to prevent damage to truck and
trailer in tight locations at low speeds.
-
10" Travel
-
Fits both
16K and 18K models
-
Round tube
design allows for smoother operation
-
Operation
from either side of unit
-
Angled
steel rollers reduces binding
-
Operates
even when vehicle not in straight line
-
Operation
up to 45° angle
-
Lock Pin
for additional security
-
Rubber grip
handle for comfortable operation
Tapered holes for easier pull pin engagement
|
Signature Series Slider
PN 30070 |
|
|
|
 |
|
|
|
 |
|
|
|
 |
|
|
|
|
